The 8086 is a 16-bit microprocessor chip designed by Intel between early 1976 and mid-1978, when it was released. The Intel 8088, released in 1979, was a slightly modified chip with an external 8-bit data bus (allowing the use of cheaper and fewer supporting ICs), and is notable as the processor used in the original IBM PC design, including the widespread version called IBM PC XT.

The 8086 gave rise to the x86 architecture which eventually turned out as Intel's most successful line of processors.




The 8086 Family


Intel


Intel D8086-2

Intel D8086-2 Front View
Intel D8086-2 Back View
Intel D8086-2 Side View

D8086-2
Specification Details
Show



SIEMENS SAB


Siemens SAB 8086-1-C

Siemens SAB 8086-1-C Front View
Siemens SAB 8086-1-C Back View

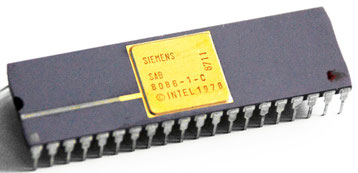

Siemens SAB 8086-1-C Side View

8086-1-C
Specification Details
Show



USSR Clones

The K1810VM86 - originally К1810ВМ86 - is a Soviet-made single-chip 16-bit microprocessor that performs nearly 2 million operations per second. It has a synchronized clock frequency of 2 to 5 MHz. It is a clone of the Intel 8086 microprocessor, with a clock frequency of 10 MHz. Like the 8086, it has a 20-bit address bus, which allows for direct addressing 1 MB of external memory.


USSR (Kvazar) К1810ВМ86

К1810ВМ86 Front View
К1810ВМ86 Back View

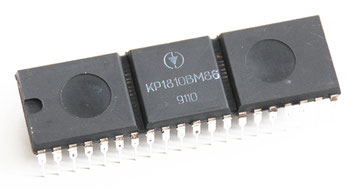

К1810ВМ86 Side View

Kindly donated by Pavel A. Zagrebin.


К1810ВМ86
Specification Details
Show



The 8088 Family

The Intel 8088 microprocessor is a variant of the Intel 8086. Introduced on July 1, 1979, the 8088 had an 8-bit external data bus instead of the 16-bit bus of the 8086. The 16-bit registers and the one megabyte address range were unchanged, however. In fact, according to the Intel documentation, the 8086 and 8088 have the same execution unit - only the bus interface unit is different. The original IBM PC was based on the 8088.
